Hi,
Does anyone know the pinout for the IR Eye, Monitor Control and PUC RJ45 connections to connect to a Beosystem 4?
Regards
Pinout for PL to NL is here:
http://aijaa.com/rT5TuQ
but the IR Eye (and the PUC controller connectors evade me!

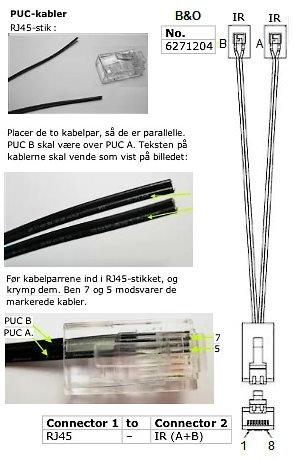

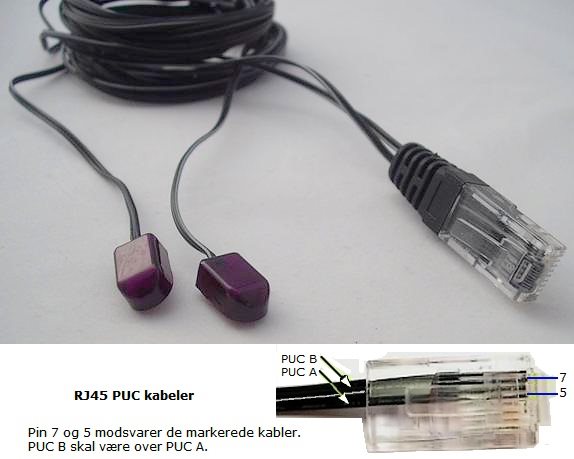

Double PUC to RJ45: ('stolen' from Peter Pan's tips)
Ralph-Marcus

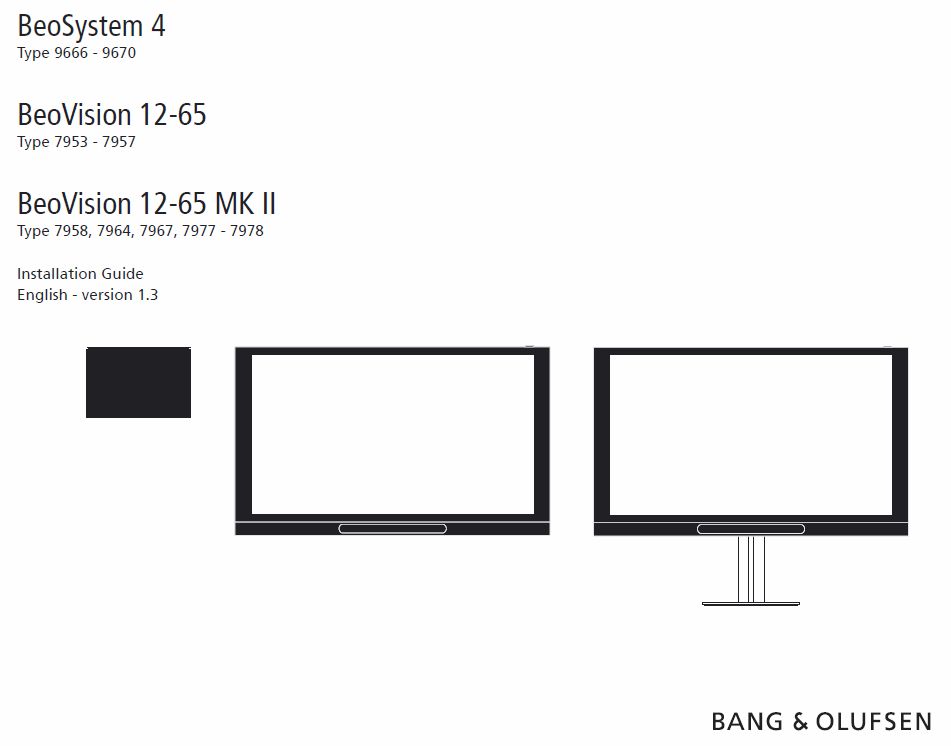

There is a Beosystem 4 BeoVision 12 65 Installation Guide (PDF) available….
Try this link or send a PM.
Ralf
PS: Preview
Living Room: Beosystem 4, Beolab 7-2 (Center), Beolab 9 (Fronts), Beolab 8000 (Rears), no Subwoofer. Screen: Sony KD-85XH9096Dining Room: Beosound Essence MK II with Beolab 4000 on stands, fed by Amazon Echo Show 8Home Cinema: Beosystem 4, Beolab 7-4 (Center), Beolab 1 (Fronts), Beolab 4000 (Rears). Projector: Sony VPL-HW55Home Office: Beosystem 3, Beolab 7-4, Beolab 5000, Screen: Sony KD-55XH9005 on Beovision 7-40 stand, ML to Beosound 9000 MK3 and Beosound 5/Beomaster 5 (1 TB SSD version)Bedroom: Sony KD-65XH9077, Beosound Essence MK II with Beolab 6002 and Beolab 11 (all white, wall-mounted)
In storage: Beolab 5000/Beomaster 5000 (1960s).
Thanks Guys.

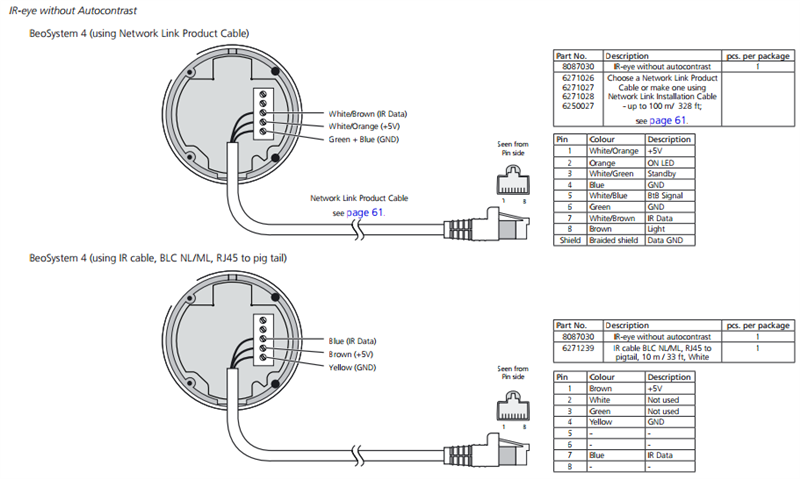

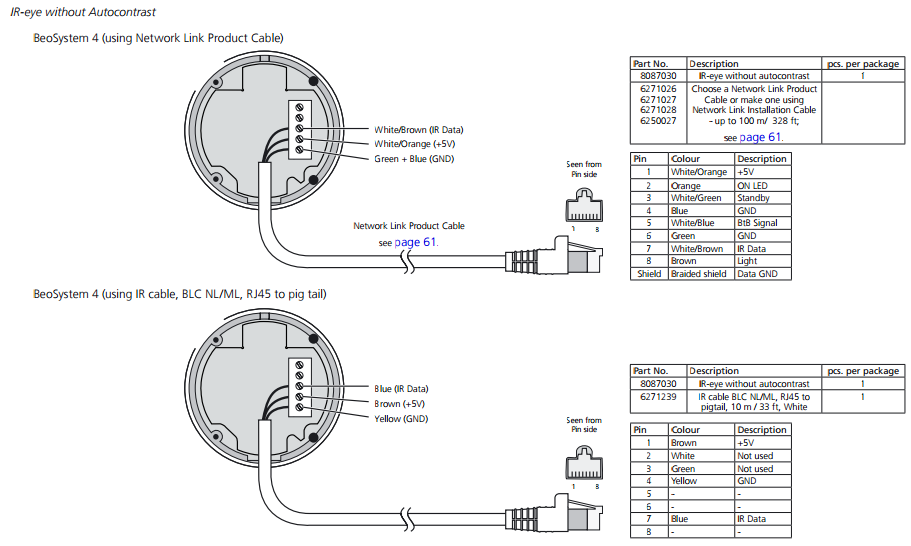

The IR blaster pinout looks like pin 8 for -ve and 7 for signal. The other diagram for IR-Eye is exactly what is needed!
Note to Admins.
Now I’ve got the documents, how do I upload them to the product pages? There is nothing on beosystem 4 there at the moment.
