Beogram 1500 motor wirning

rated by 0 users
This post has 4 Replies | 0 Followers

Orava
Top 100 Contributor
Finland
Posts 991
OFFLINE
Bronze Member
Reply
Orava Posted: Thu, Dec 19 2019 9:05 AM

Hello

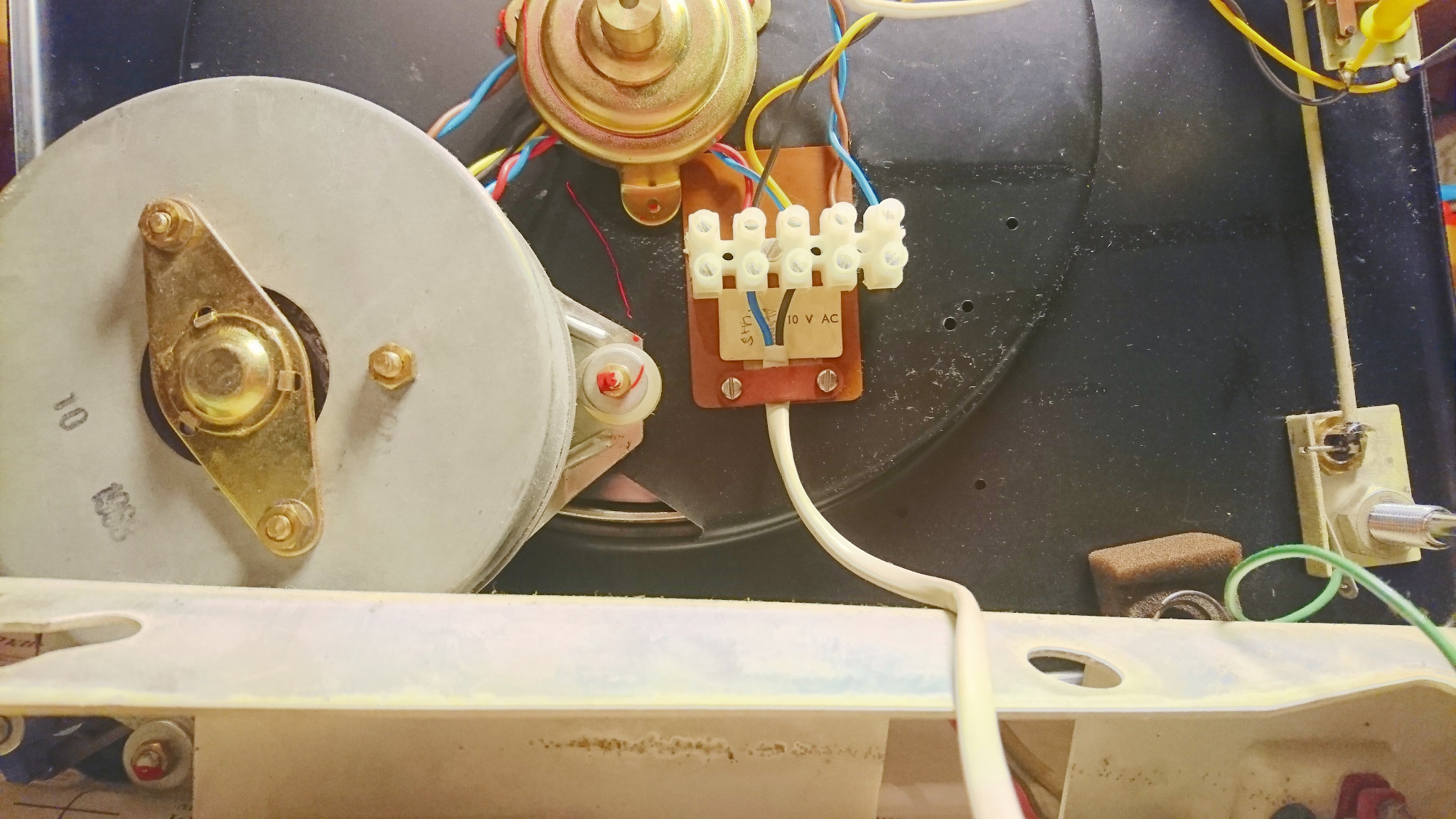

Can anybody tell what are brow and light blue wires? Connected only to motor. Is this wiring right?

My manual shows different kind of motor.



 blah-blah and photographs as needed

Dillen
Top 10 Contributor
Copenhagen / Denmark
Posts 13,191
OFFLINE
Founder
Moderator
Reply
Dillen replied on Thu, Dec 19 2019 10:10 AM

They will deliver AC power to the optional RIAA module (Beogram 1000).
The motor doubles as a transformer.

Beogram 1500 was produced with different motors.

Martin

Orava
Top 100 Contributor
Finland
Posts 991
OFFLINE
Bronze Member
Reply
Orava replied on Thu, Dec 19 2019 12:42 PM

Ok, thank you. This motor might be dead then.



 blah-blah and photographs as needed

Dillen
Top 10 Contributor
Copenhagen / Denmark
Posts 13,191
OFFLINE
Founder
Moderator
Reply
Dillen replied on Thu, Dec 19 2019 2:13 PM

That's very rare.
Will it rotate by hand?

Martin

Orava
Top 100 Contributor
Finland
Posts 991
OFFLINE
Bronze Member
Reply
Orava replied on Fri, Dec 20 2019 7:42 AM

Yes it rotates. Have not make any investigatios on it yet.

 blah-blah and photographs as needed
