Frage zu IR Auge

rated by 0 users
This post has 2 Replies | 1 Follower

jgraefe
Not Ranked
Posts 60
OFFLINE
Bronze Member
Reply
jgraefe Posted: Fri, Apr 3 2020 9:56 AM
Hi,

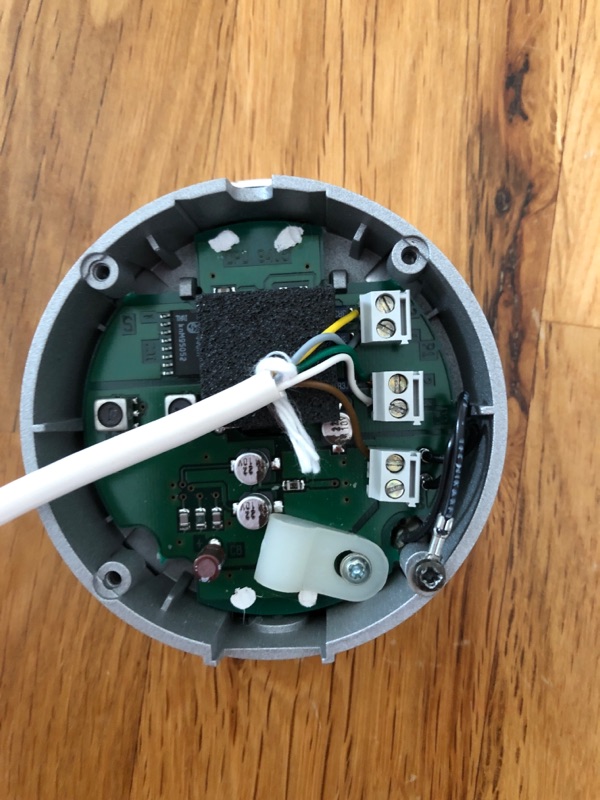

Wer kann mir etwas zu diesem IR Auge sagen? Es hat ganz normal die Timer und Play Tasten dran, aber ich finde nichts zur Belegung.

BS9000 + BS Core + Beosystem 3 + BL8000 + BL4 + BL2 + BL7-1 // BeoVision 7 32“ + BL8000 // Beoplay M5 // Beoplay S3 // 2x BL3500 // 2x BeoPlay A6 + 2x Essence Remote // 2x BeoSound 8 // Playmaker + BL6000

comeonbert
Top 500 Contributor
Posts 163
OFFLINE
Bronze Member
Reply
comeonbert replied on Sat, Apr 4 2020 10:01 AM

Hallo die Belegung von oben

grau - P1 -2   Data
gelb  - P1 -1   Data

weiß - P2 -2   5 V
grün - P2 -1   IR

braun - P3 - 2 GND
leer   - P3 - 1





My B&O is B&O.

jgraefe
Not Ranked
Posts 60
OFFLINE
Bronze Member
Reply
jgraefe replied on Wed, Apr 22 2020 2:34 PM
Danke! Hat funktioniert :)

BS9000 + BS Core + Beosystem 3 + BL8000 + BL4 + BL2 + BL7-1 // BeoVision 7 32“ + BL8000 // Beoplay M5 // Beoplay S3 // 2x BL3500 // 2x BeoPlay A6 + 2x Essence Remote // 2x BeoSound 8 // Playmaker + BL6000
