Beomaster 1200 2 pin din sockets

Reply

MattSquire75 Posted: Sat, May 23 2020 10:09 AM

rated by 0 users

Hi there,

Hoping I can get some advice on a problem I have.

The Beomaster has those 2 pin din sockets at the back. On mine there are quite worn out and so the plugs actually wobble a little so the connection is quite dodgy.

I have two possible solutions.

1. Replace the sockets. But I cant seem to find any original parts for these, or even know what to look for. I have found an alternative but it would mean a little cosmetic surgery on the Beomaster.

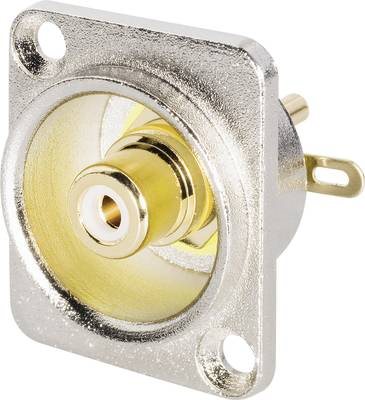

2. Replace the sockets for a more modern alternative. Like the attached image. Again a little cosmetic surgery but not as harshe as the previous alternative, and I would get a more stable connection?

but first is this even possible? Is it a straight swap or does it mean changing a few other things internally on the beomaster?

Would be great to get some opinions on this as I am not really sure what the best option is

Thanks a lot

Matt

Reply

MattSquire75 replied on Sat, May 23 2020 10:10 AM

rated by 0 users

Oops, sorry here is the image

Reply

fkatze replied on Sat, May 23 2020 10:20 AM

rated by 0 users

Are these sockets for speakers or other input/output devices?

Reply

MattSquire75 replied on Sat, May 23 2020 10:23 AM

rated by 0 users

Hi there Thanks for the reply

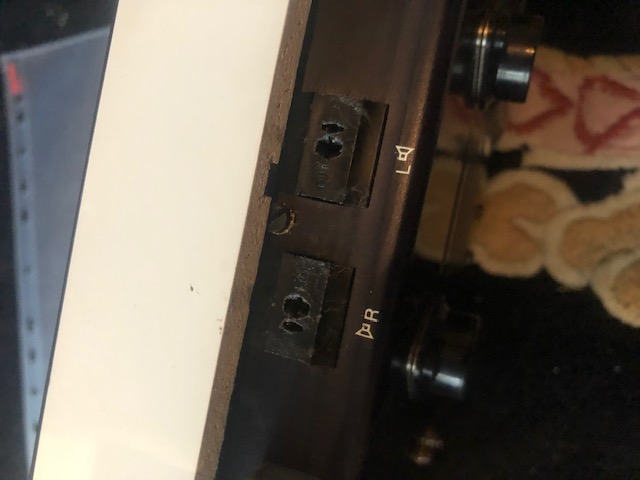

These are just for the speakers. Here is a picture. As you can see they are quite worn out.

Reply

MattSquire75 replied on Sat, May 23 2020 10:25 AM

rated by 0 users

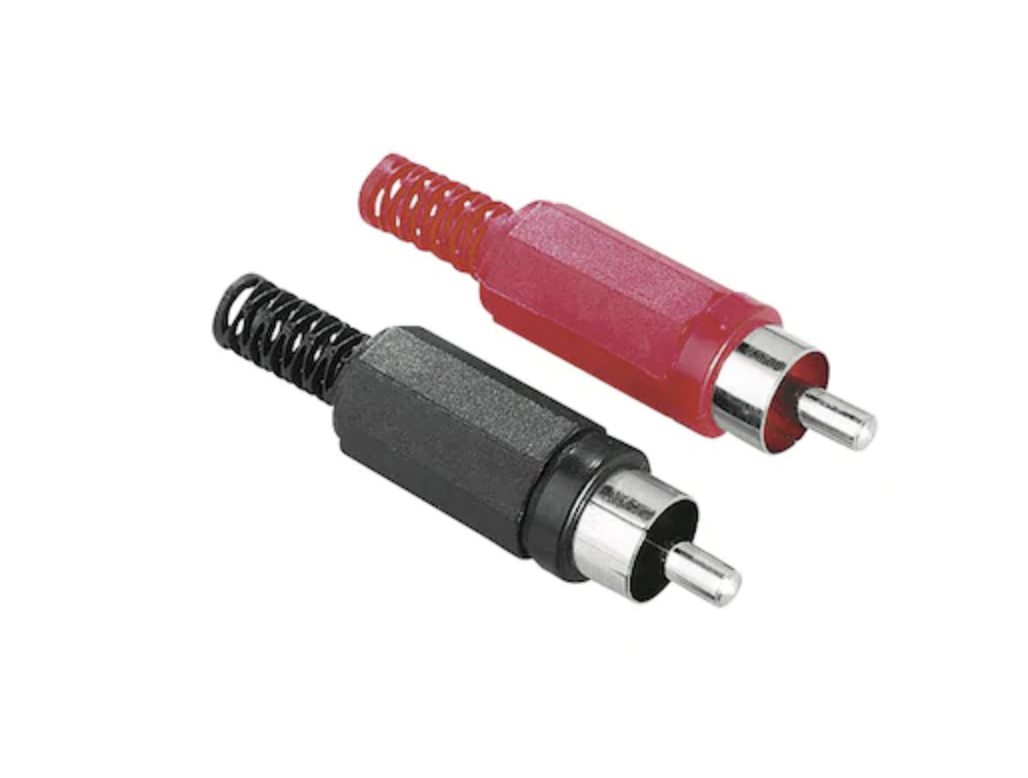

I was thinking I could add something like this (in black) But it would mean as I mention a bit of cosmetic surgery.

And not sure it will work if I change to a more modern alternative.

Reply

fkatze replied on Sat, May 23 2020 10:29 AM

rated by 0 users

RCA jacks aren't really suitable for speakers.  Either replacement DIN or go for standard screw/banana plug terminals.  If you have trouble finding replacement DINs someone here should be able to source them.  I haven't actually looked for them here, but will next time I head down to the electronics district, probably next week.

Reply

MattSquire75 replied on Sat, May 23 2020 10:35 AM

rated by 0 users

AH ha ok, yeah I have seen those banana plugs. Ill give those a try. then.

I guess at the end of the day its a cosmetic thing. Do I want it to look completely original?

Ill keep looking.

Thanks for you help on this matter.

Cheers

Matt

Reply

Dillen replied on Sat, May 23 2020 11:25 AM

rated by 0 users

I have some of the right ones in the dungeons. Both new and used.
PM or email me.

Martin
