Beovision mx7000 stand connector wiring

rated by 0 users
This post has 1 Reply | 1 Follower

webex
Not Ranked
Posts 1
OFFLINE
Bronze Member
Reply
webex Posted: Wed, Jul 22 2020 9:16 PM

Hi

I've got a mx7000 with motorized stand, but unfortunately the 4pin connector got pulled apart from the cable during when moved. It seems to be easy to solder it back together, but I fail to find the pinout - which cable goes to which pin?

RaMaBo
Top 150 Contributor
near Munich
Posts 626
OFFLINE
Gold Member
Reply
RaMaBo replied on Wed, Jul 29 2020 10:07 PM

Hi,

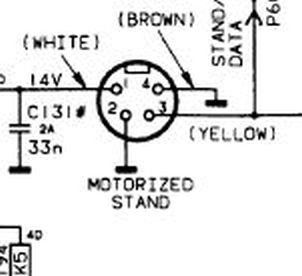

this should help connecting the wires to the plug.





Ralph-Marcus
