Beogram 1200 Platter

rated by 0 users
This post has 2 Replies | 1 Follower

ColinP
Not Ranked
Posts 5
OFFLINE
Bronze Member
Reply
ColinP Posted: Wed, Aug 14 2013 1:38 PM

Hello



I  trying to change the belt on my Beogram 1200 but cannot remove the platter can anybody help me?  Normally you tilt the platter and they just lift out, but it seems not on this model.



 Any help or advice would be much appreciated. Thanks Colin

Richard Gearing
Not Ranked
England
Posts 25
OFFLINE
Bronze Member
Reply
Richard Gearing replied on Wed, Aug 14 2013 2:00 PM

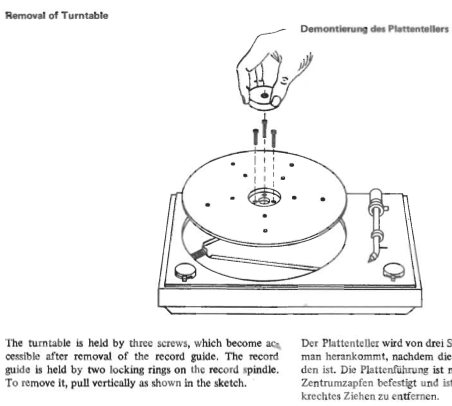

I believe you turn the 45 adaptor in the centre of the platter till it pops out. Pull vertically to remove it, underneath are three securing screws. Regards Richard

Fredrik_thelander
Not Ranked
Posts 2
OFFLINE
Bronze Member
Reply
Fredrik_thelander replied on Mon, Jun 23 2014 2:01 PM

I wonder if someone have a schema for how the belt should be. Opened the beogram 1200 and there were no belt, Got an replacement and wonder how i should fit...



Thanks for the helt
