Beosound 3000 Door problems

rated by 0 users
This post has 8 Replies | 0 Followers

W.Frankenberg / Gandalf
Top 500 Contributor
Heilbronn / Germany
Posts 290
OFFLINE
Bronze Member
W.Frankenberg / Gandalf Posted: Wed, Dec 30 2020 11:03 PM

hello beoworlder, i am the owner of a beosound 3000 since today.

Unfortunately, the device has a little flaw. when the doors open, you can hear the motor

continue to run for about 3 seconds when the doors are already at the stop, which is definitely

not good for the belt.  Can something be changed?

Another thing is that the doors sometimes open without contact and can then only be closed

"with good persuasion", the standby button then does not react.

does anyone have a tip or a solution

wilfried

Dillen
Top 10 Contributor
Copenhagen / Denmark
Posts 13,191
OFFLINE
Founder
Moderator
Dillen replied on Thu, Dec 31 2020 7:58 AM

Oxidated contacts at the cam wheel?

Martin

W.Frankenberg / Gandalf
Top 500 Contributor
Heilbronn / Germany
Posts 290
OFFLINE
Bronze Member

hello Martin, thank you for your solution to the door problem?

I haven't looked it up yet, I probably won't do it "this year" either.Smile

I'm postponing this to 2021!DrinksCool

by the way I wish you and all the other Beoworlders a happy and healthy new year.

May we take the crown off the CORONA!

wilfried

W.Frankenberg / Gandalf
Top 500 Contributor
Heilbronn / Germany
Posts 290
OFFLINE
Bronze Member

Dillen:

Oxidated contacts at the cam wheel?

Martin



today I dismantled my Beosound 3000 so that I got to the door mechanism.




I also checked the end shutdown by the cam wheel and cleaned up the contact.

But the belt seems to have slackened in the same place for too long and has deformed accordingly,

I still have to replace it! Martin, you will get a PM or email!

wilfried

Amigo799
Not Ranked
Kiev , Ukraine
Posts 30
OFFLINE
Bronze Member
Amigo799 replied on Thu, Jan 14 2021 1:24 PM

Hello

I have the same problem with the door opening.

Could you take a photo of the switch that needs cleaning in more detail? And how exactly did you clean it?

Thanks a lot )

Beosound 9000 + Beolab 8000, Beosound Century, Beocenter  2500 + Beolab 2500,  Beosound 6, Beoplay H6, Beoplay H6 (2-го поколения), Beoplay H8, Beoplay H9, Beoplay E8

W.Frankenberg / Gandalf
Top 500 Contributor
Heilbronn / Germany
Posts 290
OFFLINE
Bronze Member

Amigo799:

Hello

I have the same problem with the door opening.

Could you take a photo of the switch that needs cleaning in more detail? And how exactly did you clean it?

Thanks a lot )

Sure I do.

I'm just waiting for the door belt, when it's there I'll take photos of where the switch can be found.

In the picture above you can see the Clamper Belt and the associated switch.

wilfried

Amigo799
Not Ranked
Kiev , Ukraine
Posts 30
OFFLINE
Bronze Member
Amigo799 replied on Fri, Jan 15 2021 9:45 AM

Ок



This switch ( which on foto ) needs cleaning ?

How you did it? I meen cleaning procedure.

Beosound 9000 + Beolab 8000, Beosound Century, Beocenter  2500 + Beolab 2500,  Beosound 6, Beoplay H6, Beoplay H6 (2-го поколения), Beoplay H8, Beoplay H9, Beoplay E8

W.Frankenberg / Gandalf
Top 500 Contributor
Heilbronn / Germany
Posts 290
OFFLINE
Bronze Member

Amigo799:

Ок



This switch ( which on foto ) needs cleaning ?    No, this is te Clamper switch!,,

How you did it? I meen cleaning procedure.

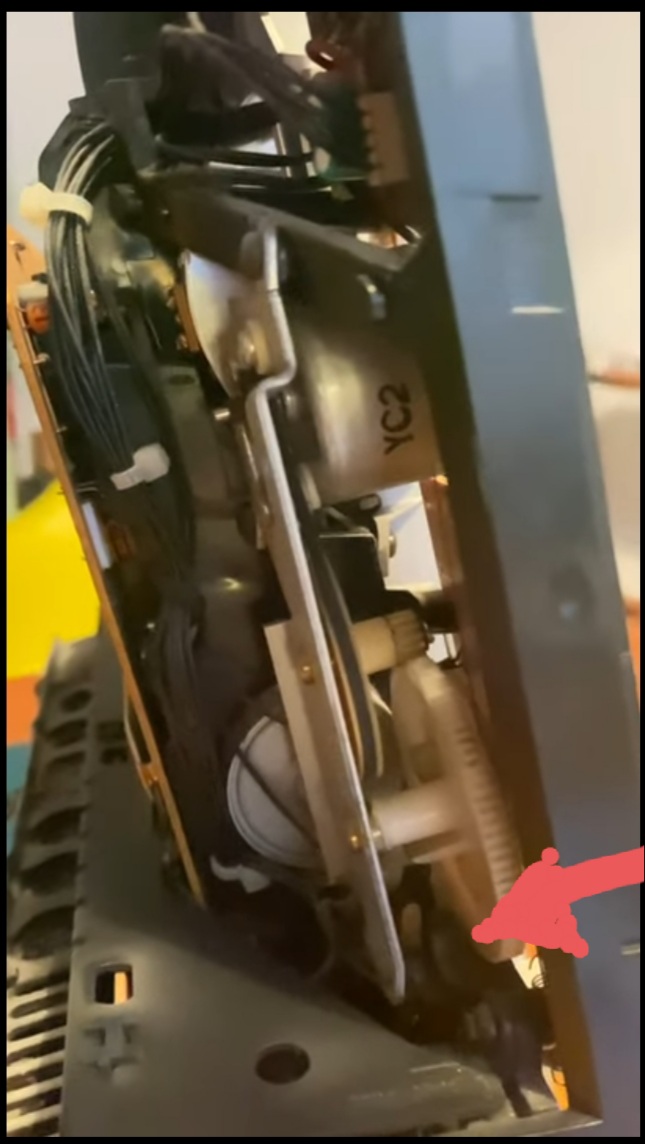

The switch for the doors is under the metal plate here is a photo (unfortunately a bit out of focus)



I usually clean the switching contacts with a rough cardboard that I sprayed with WD40 (WD40 dissolves the corrosion a little and the rough cardboard strip removes the dirt)

wilfried

W.Frankenberg / Gandalf
Top 500 Contributor
Heilbronn / Germany
Posts 290
OFFLINE
Bronze Member

Here is a Youtube Video, it shows the changing of the door belt, the door end switch is also shown



https://youtu.be/bFrZ_LqCGOo



By the way, if you have the same problems with the doors, it makes sense (probably even necessary) to replace the door belt

wilfried
