Disassemble Beocom 2

Hey Guys,

I have two Beocom 2s. One is technically working but scratched/broken and one is nice looking but has the display glitch. So I want to make one functioning one out of it.

I already removed the battery and the buttons of the keypad. However I don't get any further, and I don't want to apply any unnecessary force.

Does anybody know how to disassemble the Beocom 2 without breaking it? There is a video on YouTube, but the quality is very bad (often not in focus) and it seems like the guy is breaking a lot of parts in the process.

Thanks

Lenny

You need pliers with very long fangs. Or you can use two long metal bars (?)/sticks. There is kind of a c-ring in the middle that you need to squeeze together to slide out the internals.

It’s 6 years since I opened one, so this is all from memory, so maybe not super accurate.

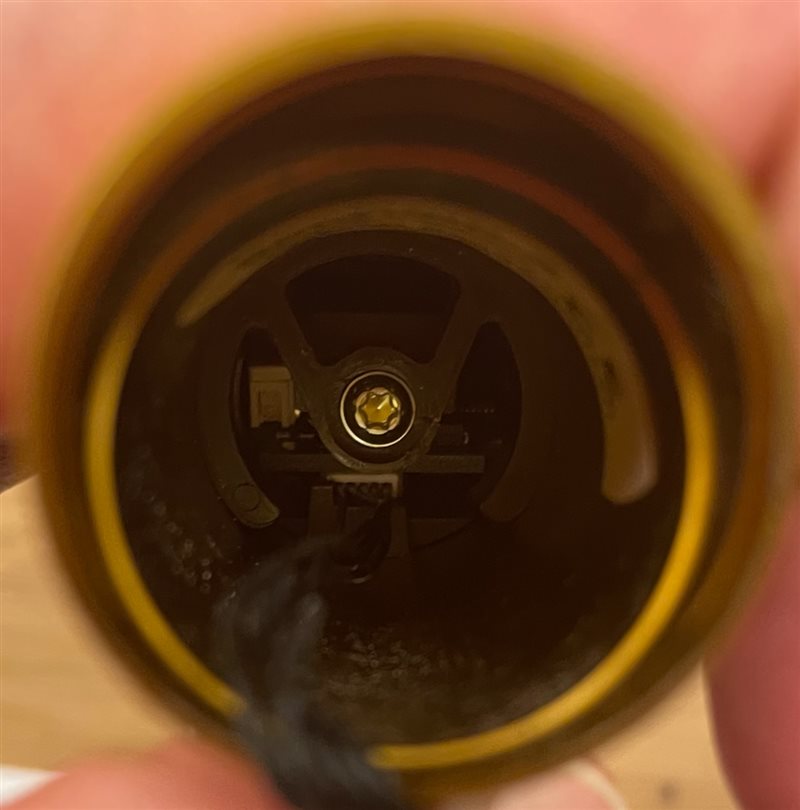

Are you talking about this C-Ring which is behind the battery and secured by a Torx screw?

So after removing this C-Ring you can pull out the insert from the Top? Are there any other "clips" which need to be unclicked?



Correct.

I am pretty sure that the whole thing will slide out when it is removed.

But you’ll find the service manual in the site also.

leosgonewild:

But you’ll find the service manual in the site also.

Nope, not for the Beocom 2. Unfortunately!



Looking at the picture, it looks that that is not a c-ring. I think that if you take out that screw, you can slide the internals upwards and out at the top.
