I bought a Beosound 3 last year, however the top panel has become unresponsive. As there is no warranty on it I tried the solution posted on the forum here to use electric spray. Unfortunatly it did not work. Does anybody know how much a replacement panel will cost? I can replace it myself.
Mark
Hello!
Here in Sweden Bang & Olufsen pay for the top panel.
The work to replace the new top is for you to pay, in Sweden it cost me 50euro one year ago.
Fair price in my opinion
best regards
Living room: BeoVision 4-50 ACM, Beosystem 3 MK3 with samsung SP-H710AE projector, BeoLab 7-1, BeoLab 6000x3pair, BeoSound 3200, AV & CD cabinett & Beo4.
Lounge: BeoSound 3, BeoVision 7-32 mk5 & Beo4
Kitchen: BeoLab 2000 & Beo4
Master bedroom: BeoVision Avant-32, DVD1, BeoSound Ouverture & Beo4
Guest room: BeoVision 4002, DVD1, BeoSound 2000 & Beo4
parasound: Hello! Here in Sweden Bang & Olufsen pay for the top panel. The work to replace the new top is for you to pay, in Sweden it cost me 50euro one year ago. Fair price in my opinion best regards
Seems bizarre - under warranty I can see them replacing it but not if it isn't. However, the top panels do appear on eBay quite often and sell for anything from about 20 €. This is a known problem, particularly with MKI models and B&O have replaced top panels on many of these free of charge.
Dave.
Warm greetings,
I bought a Beosound 3 recently.I charged it - at first red light blinking- after a few hours- a steady red light which i presume it is fully charged. tried everything - the top touch panel is not responsive at all, in certain places on the panel can sense static.
So i took out the 4 screws at the bottom and remove the top touch panel.
Can you please let me know the email address or website where I can get a replacement touch panel ?
ANY OTHER ADVICE ON HOW TO GET THE BEOSOUND WORKING IS MUCH APPRECIATED.
MANY THANKS.
CHRISTIAN.
YOU HAVE A BLESSED DAY
BY THE WAY MY EMAIL ADDRESS IS CHRISTIANCGLEE@YAHOO.COM
MANY THANKS
http://hcw6424.pixnet.net/blog/post/116028547-bang-%26-olufsen-beosound-3-%E6%94%B6%E9%9F%B3%E6%A9%9F%EF%BC%8Bmp3-%E9%9A%A8%E8%BA%AB%E9%9F%B3%E9%9F%BF#comment-61462630
I have fix it !!
see my web page Kevin hou
Great that you fixed it! But is there an explanation in english? On this side of the planet not all people are familiar with chinese language.
sorry , I will add english explanation , today, and the control schematic
hi

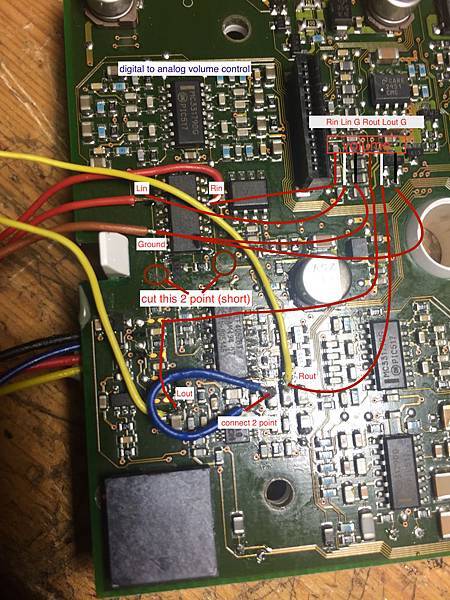

the picture show the main board , mod digital to analog VR with 100KA VR

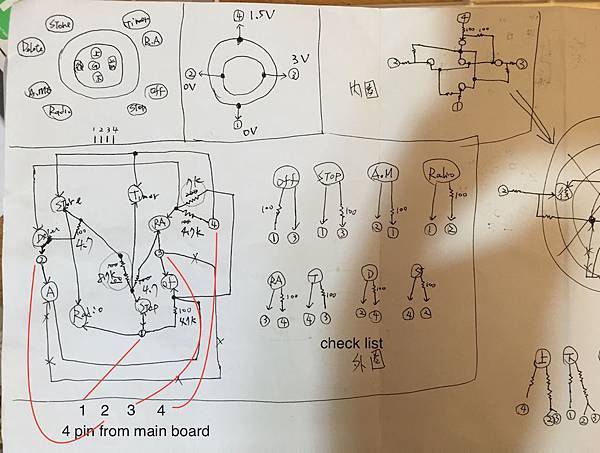

# this picture show the control schematic , 4.7k ,7k, 8.7k
the check list is for you to check witch pin need to connect
the new control board
hope can help everyone who have the same problem !!
# this picture show the control schematic ,
Can someone ( hcw6424 ?) tell me the resistors value regarding the central keys of the touch panel (<> go ...)?
. In the control schematic picture I can't read the values.Thanks
